Name: Starwatt® 9V Mini UPS with 3 - 6 Hours Backup, Supports all 9V ≤2A Devices, WiFi Routers, Intercoms, CCTV, Set-Top Boxes, Baby Monitors, POS Machines, Label Printers, Arduino Projects, and Guitar Pedals - Starwatt®
SKU: ROU9V2S
Price: 1699.00 INR
Availability: InStock

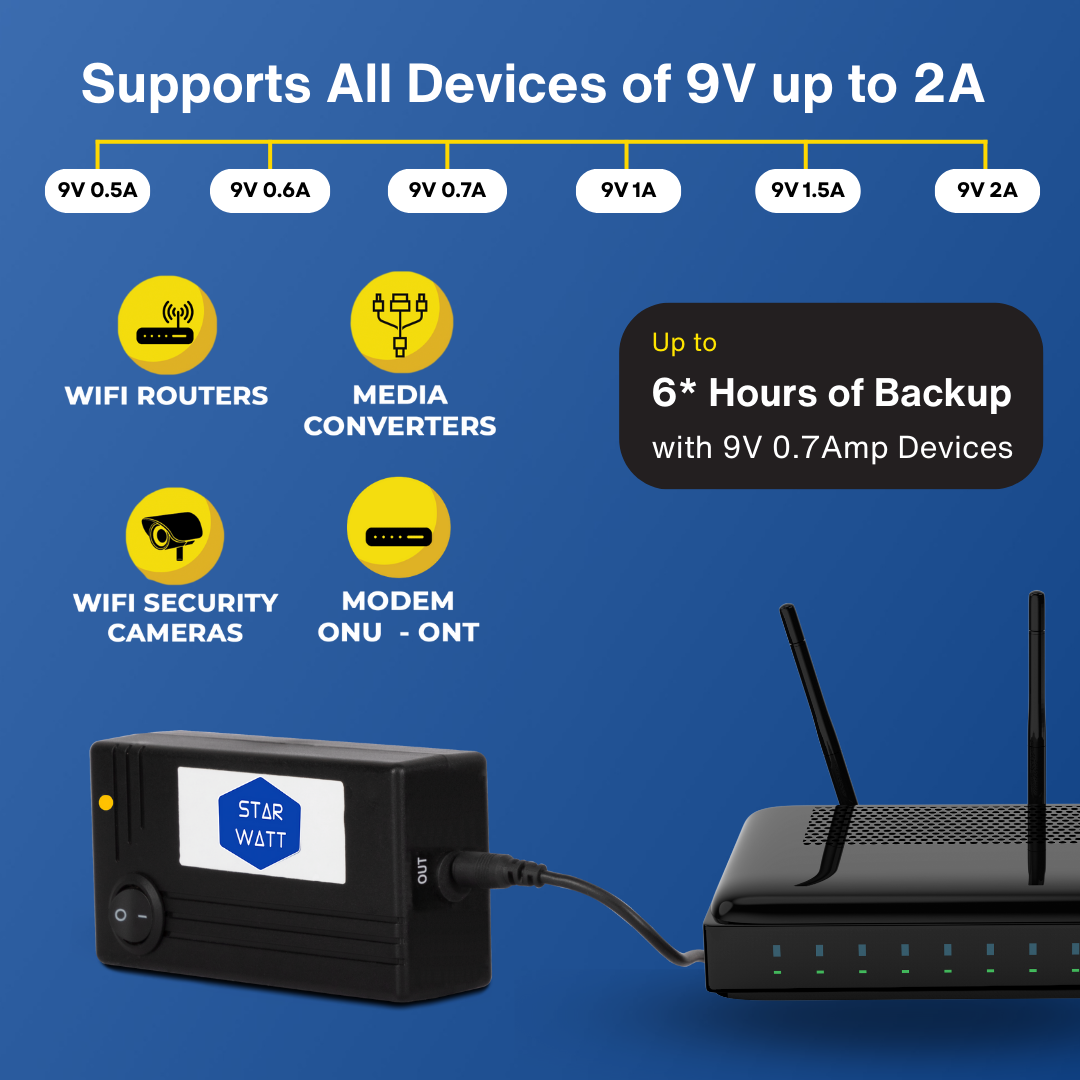

Starwatt® 9V Mini UPS with 3 – 6 Hours Backup, Supports all 9V ≤2A Devices, WiFi Routers, Intercoms, CCTV, Set-Top Boxes, Baby Monitors, POS Machines, Label Printers, Arduino Projects, and Guitar Pedals

₹1,699.00

Select Battery Backup:

Starwatt 9V Mini UPS provides up to 3-6 hours of backup for your 9V Wi-Fi router, intercom, or CCTV. Features zero-lag switching, regulated 9V output, EV-grade lithium-ion batteries, and intelligent CC-CV charging and Battery managment system for safe and reliable power.

Specifications

Item Model – ROU9V2S
Power Source / Input – Router’s Power Adaptor Input: 9V 2A +/- 2%
Number of Outputs – Single
Power Output – 9V ≤2A +/- 2%
Battery Capacity – 24.84Wh, 2 x 2900 mAH

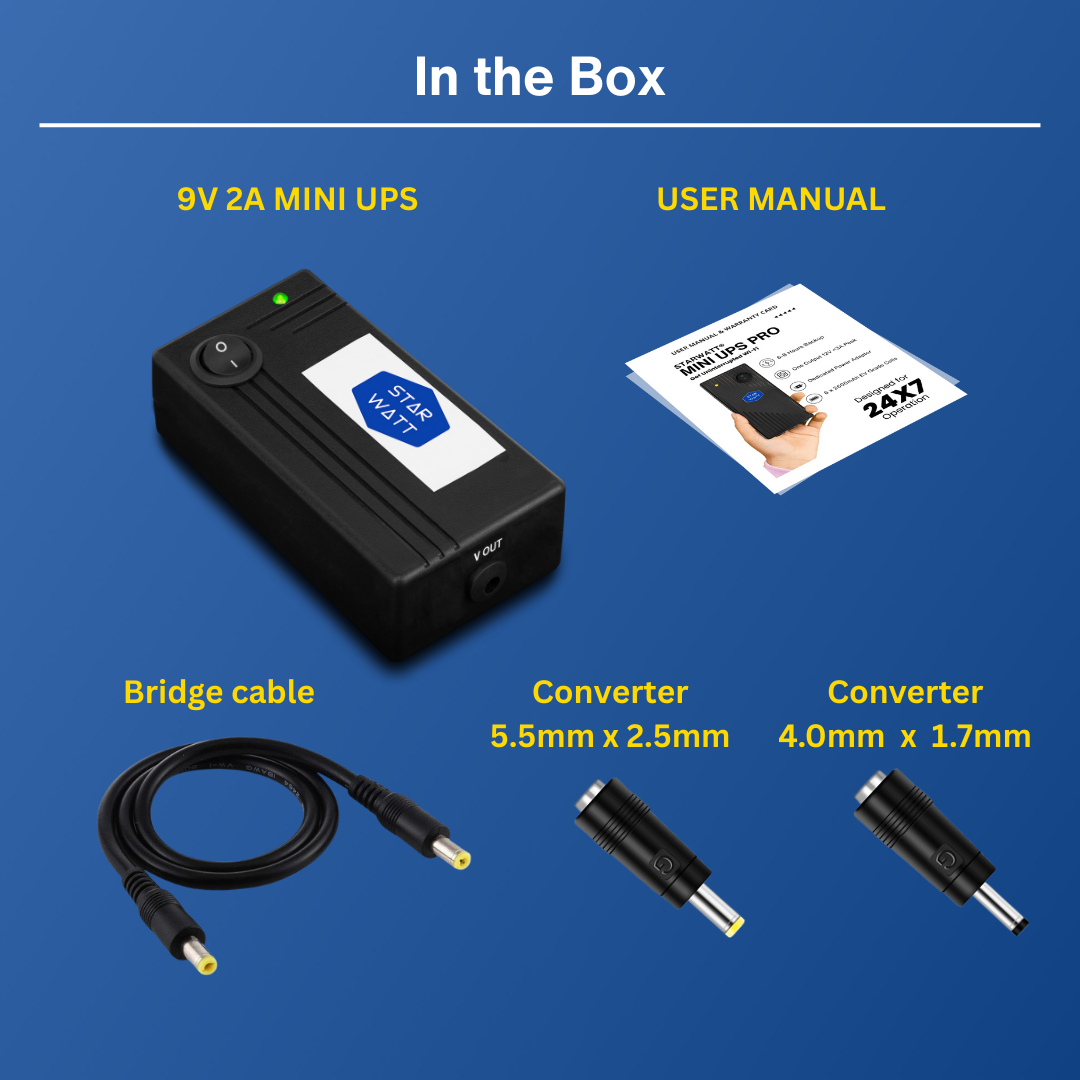

Box Content

Router Online UPS (1), Bridge Cable (1) and Connectors (2), User-Guide (1) & Warranty Card (1).

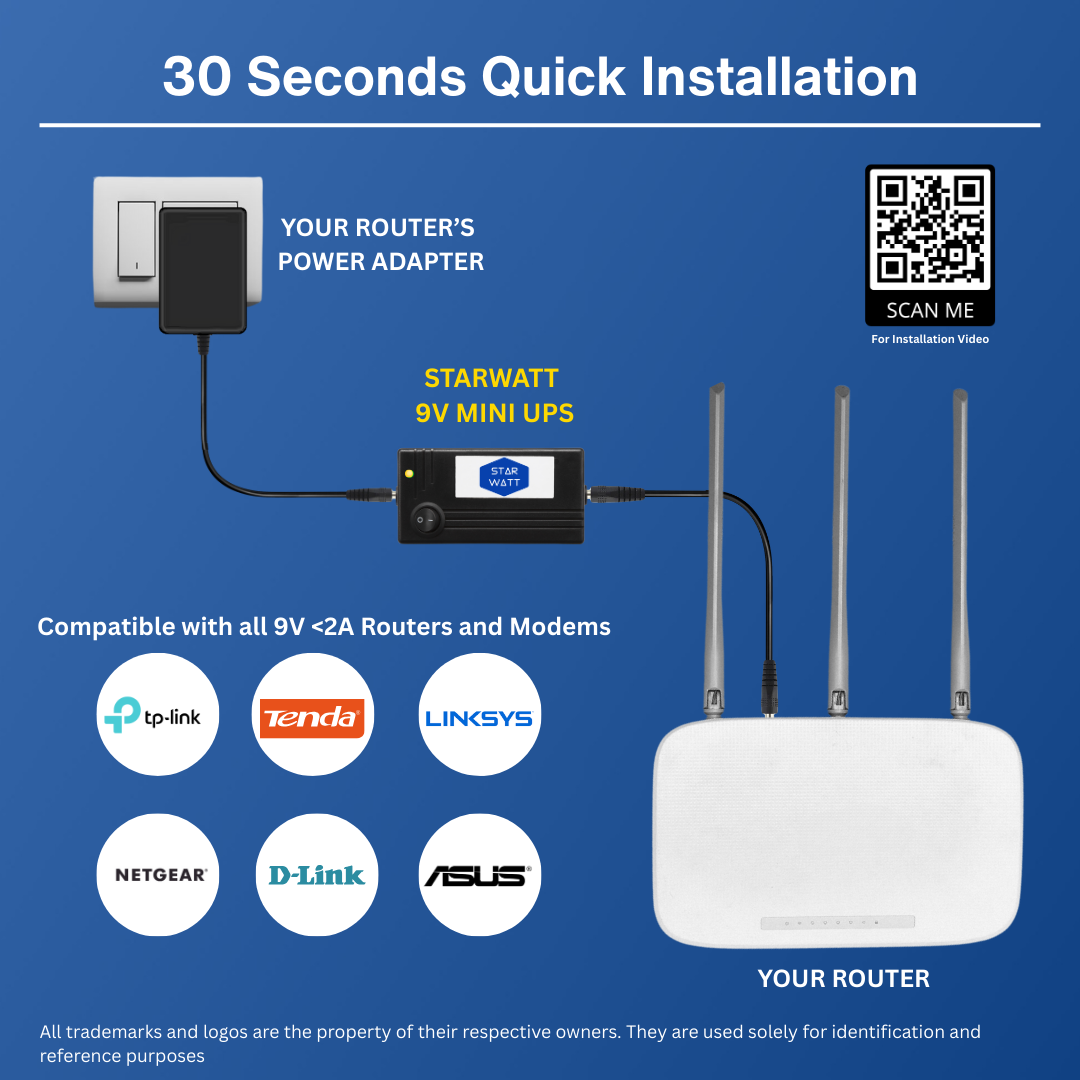

Installation Process

Installation Steps:
1.Switch off your Router Main Power Supply.
2. Disconnect your Router from Power Adapter.
3. Ensure that Router UPS Push Button switch is in OFF position (Red mark in pressed down position is ON; other way is OFF).
4. Connect Router Power Adapter to “IN” side of Router UPS.
5. Connect “OUT” Side of Router UPS with supplied Cable to your Router Power Input.
6. Switch on the Main power supply.
RED Light on Router UPS Indicates Router UPS is receiving Power from the Adaptor and Battery Charging.
BLUE Light on Router UPS Indicates Router UPS is receiving Input Power and Battery is fully charged.
Green Light on the Router UPS Indicates Router UPS is Not receiving Input Power and UPS mode is ON.
7. Switch on the Router UPS Push button switch. Now your router should be up.

Additional Information

IMPORTANT:
1. Please check the power ratings of your Wi-Fi router/adapter (written on back of router/adapter) before ordering the compatible model. Router’s voltage must match with UPS voltage.
2. The Starwatt Wi-Fi Router Online UPS should be charged for 1 hour before first use.
3. Please check the power ratings of your Wi-Fi Router to order compatible model. Self-Check compatibility section can help to choose the right model.
4. Make sure to connect your adaptor to the input. Connecting the power source to the output jack can permanently damage the device and void warranty.
5. Keep the UPS away from the reach of children.
6. Compatible with all 9V, <2A powered Modem, Wi-Fi/ADSL routers. Wi-Fi routers, and DD Devices.

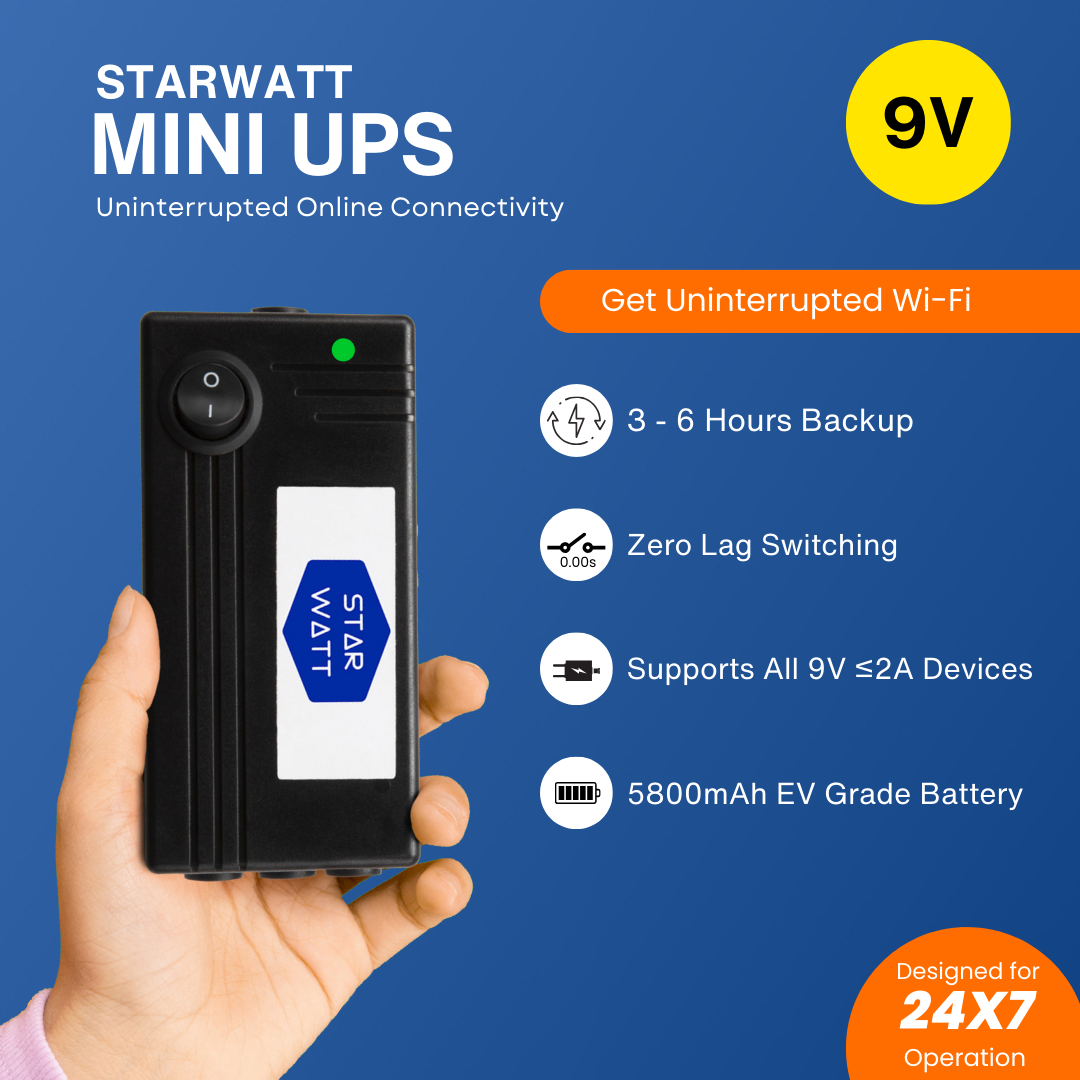

Starwatt 9V Mini UPS (Model ROU9V2S) is a compact and reliable backup power solution designed to keep your essential 9V DC devices running smoothly during power outages. Starwatt Mini UPS ensures uninterrupted operation and protection against overcharge, over-discharge, and short circuits. Its compact design allows easy installation and portability, making it a perfect choice for homes, offices, and small businesses requiring reliable power backup for critical 9V devices.

Ensure uninterrupted internet and device uptime with the Starwatt 9V Mini UPS – a compact yet powerful backup solution for 9V DC devices such as Wi-Fi routers, intercoms, CCTV cameras, and set-top boxes. Designed for devices requiring 9V up to 2A, this UPS supports popular brands like TP-Link, Tenda, D-Link, Netgear, and Digisol.

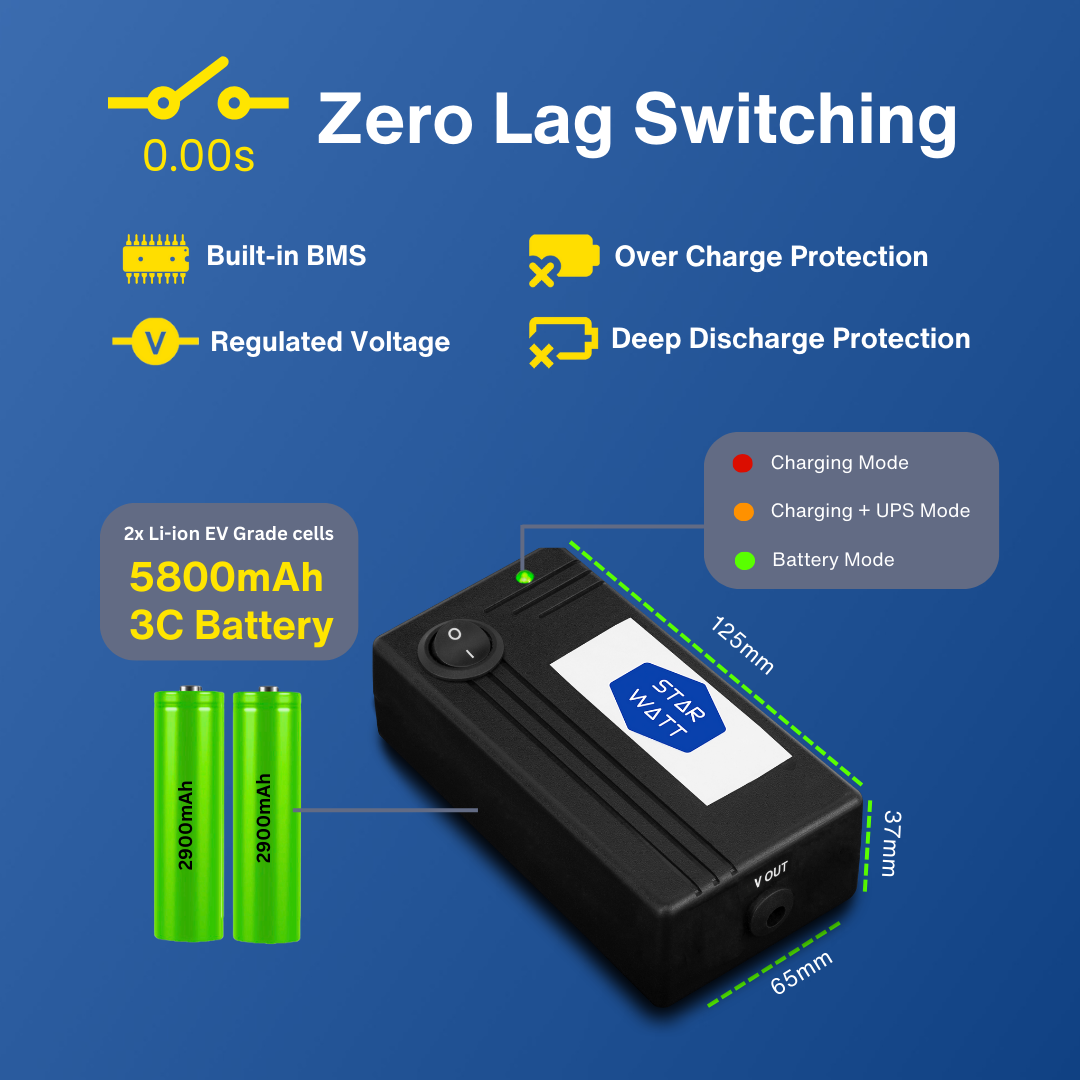

Engineered for performance, this UPS offers zero lag switching, meaning your device stays online instantly during power outages without rebooting. The regulated 9V DC output ensures stable and safe power delivery, protecting sensitive electronics from voltage fluctuations. Powered by EV-grade lithium-ion batteries (2×2900mAh) with a total capacity of 24.84Wh, it delivers reliable backup power for up to 4 hours depending on load.

The intelligent CC-CV (Constant Current – Constant Voltage) charging circuit ensures safe, efficient, and optimized charging to extend battery lifespan and maintain performance. Additionally, the built-in Battery Management System (BMS) protects against overcharge, over-discharge, short circuits, and overheating, ensuring maximum safety and battery health.

Whether for home, office, or security applications, the Starwatt Mini UPS provides a seamless, plug-and-play power backup solution with advanced battery protection and reliable voltage regulation for all your 9V devices.

Frequently Asked Questions:

How it works?

Router Online UPS has an intelligent battery management system that automatically charges the battery when the power is available and seamlessly switches to battery mode during power cuts.

How to charge the UPS?

Battery will only charge when UPS is connected to Adaptor with the power switch in the ON position.

I have a router with a thin pin, will you provide a connector for it?

Yes, connectors for thin pin routers are included in the package.

View All Questions

Q: What’s the backup time? How can I decide which model is suitable for my device?

A: Different make/models of routers, consume different amounts of current. Hence, backup time will depend on the make/model of the router from 3 to 6 hours.

You can choose the most suitable UPS for your Router from the list of the UPSs by getting the below-mentioned information:

1. What is the device you plan to use?
2. What is the working voltage and currently mentioned on the Adaptor or Router?
3. What is your expected backup time?

Q: How can I maintain the device’s lifetime?

A: When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.

If the UPS is not used for a long time, it is suggested to charge it once every 3~5months

Q: Do you have any other models?

A: Yes, we have various models with different voltage configurations, you can contact us at +91-8971090763 contact for more details.

Q: How long does the Router Online UPS provide power backup?
A: Up to 6 hours and depends on your make/model as power consumption varies with different OEMs.

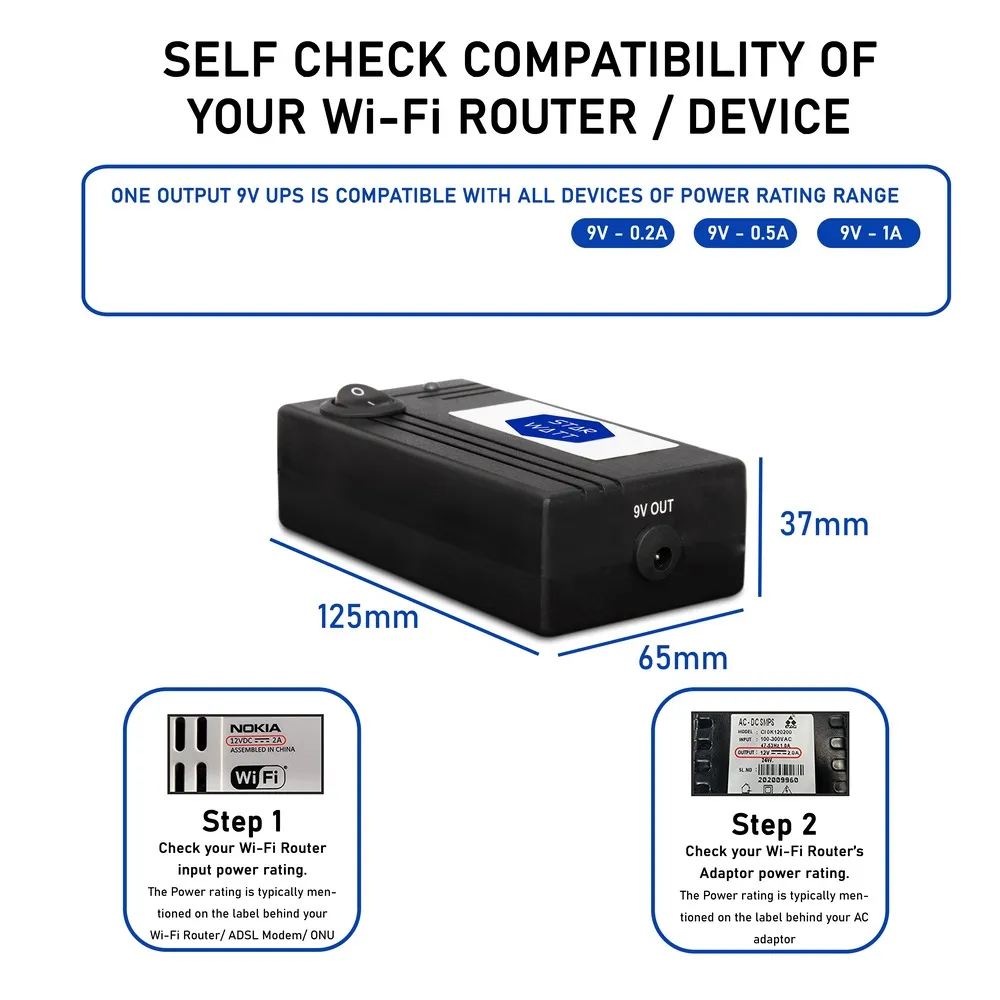

Q: How do I know if Router Online UPS will work with my Wi-Fi Router? Is there a compatibility list?
A: Starwatt Wi-Fi Router Online UPS has a range of models that supports 5V, 9V, 12V powered Wi-Fi, Wi-Fi/ADSL Router. We also provide dual and triple output devices. Please ensure power compatibility by looking at the specification sticker on the backside of the Router/Modem and power adaptor before you place the order.

Q: How do I install Router Online UPS?
A: Router Online UPS is designed for DIY (Do It Yourself). It’s really simple to install – The installation guide in the packaging box will help you install Router Online UPS in less than 30 seconds.

Q: How long does it take to install Router Online UPS to my Wi-Fi Router?
A: 30 Seconds only.

Q: Does it work with ADSL/Wi-Fi Routers?
A: Yes. Please ensure to buy/use the model with appropriate power ratings.

Q: Will my Wi-Fi Router be affected anyway?
A: No, Router Online UPS is carefully designed with several safety protection circuits and a battery management system to ensure the safety of your Wi-Fi Router.

Q: I have an ADSL Router (Modem) and a separate Wi-Fi Router, Can Router Online UPS provide power backup to both?
A: Router Online UPS is primarily designed for a single device. However, you can use a splitter cable if the combined power ratings of your Modem and Router are less than the Router Online UPS specifications.

Q: Does Router Online UPS come with a warranty?
A: Yes, Router Online UPS comes with 1 Year warranty.

Q: Can I connect Router Online UPS with any 9V device?
A: Yes. Please check the power ratings of the Wi-Fi router before connecting to the Router Online UPS. If the Rater operational voltage is 9V, then it can be used to provide power backup to any 9V router.

Q: Can I use this outdoor?
A: No. The current version of Router Online UPS is designed for Indoor use.
